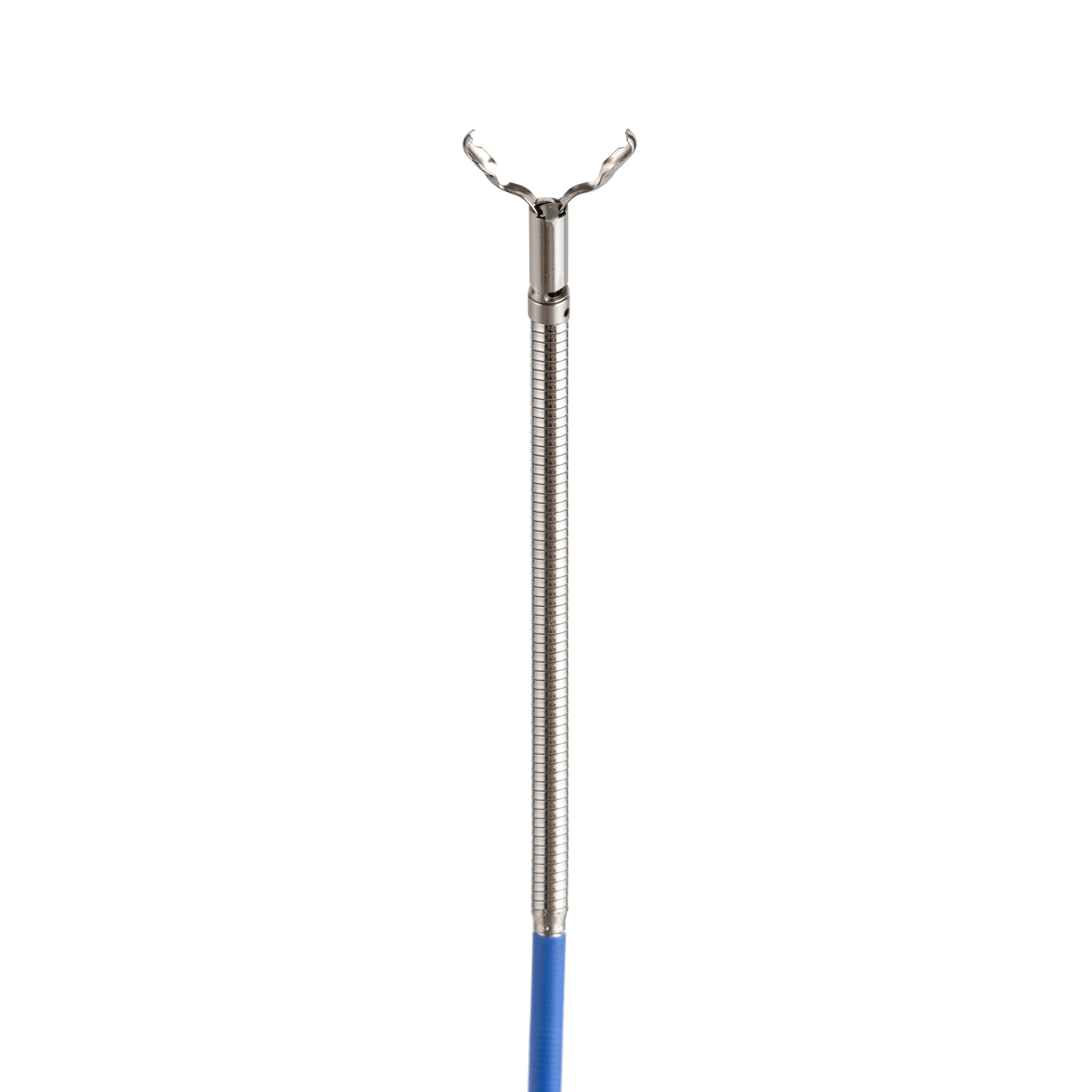

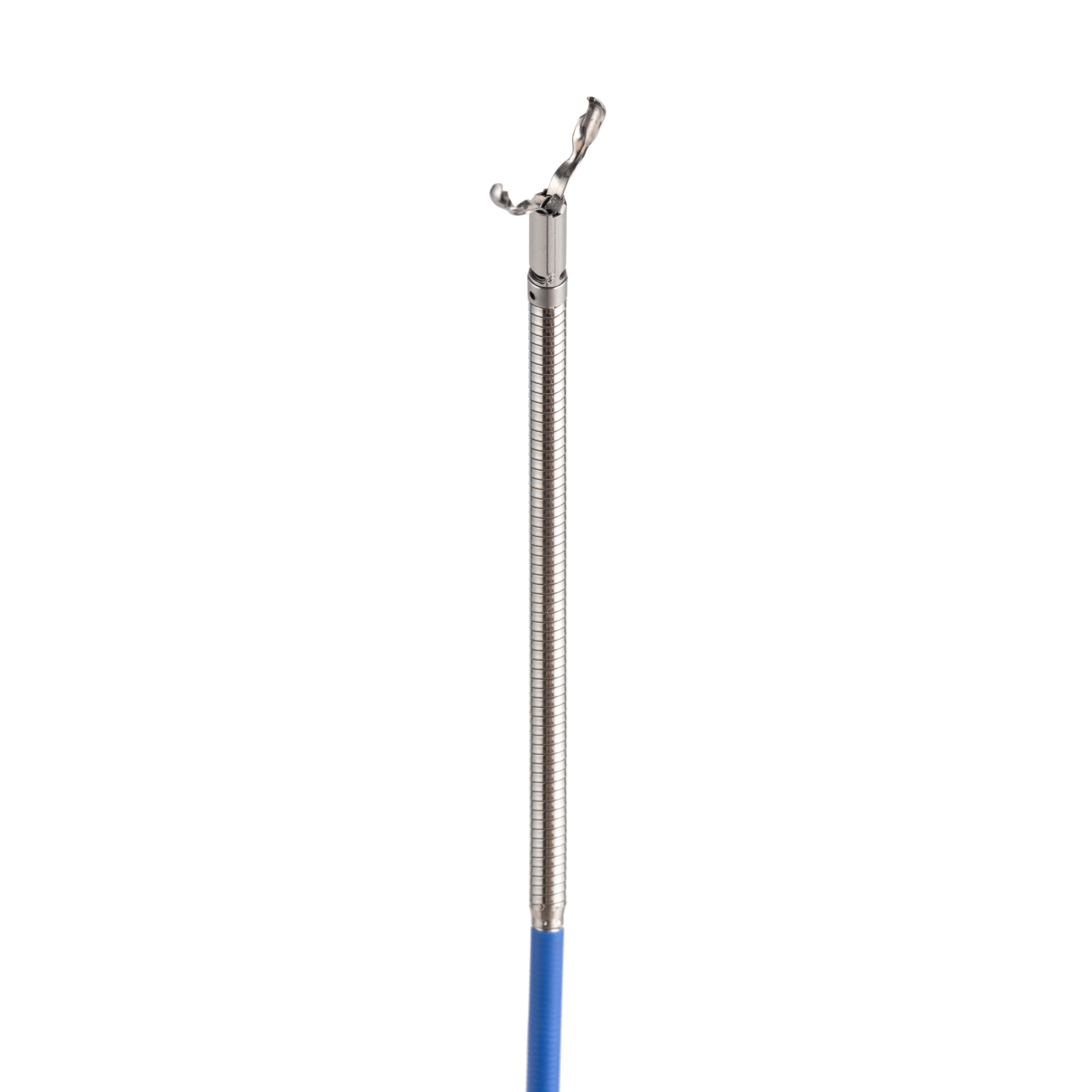

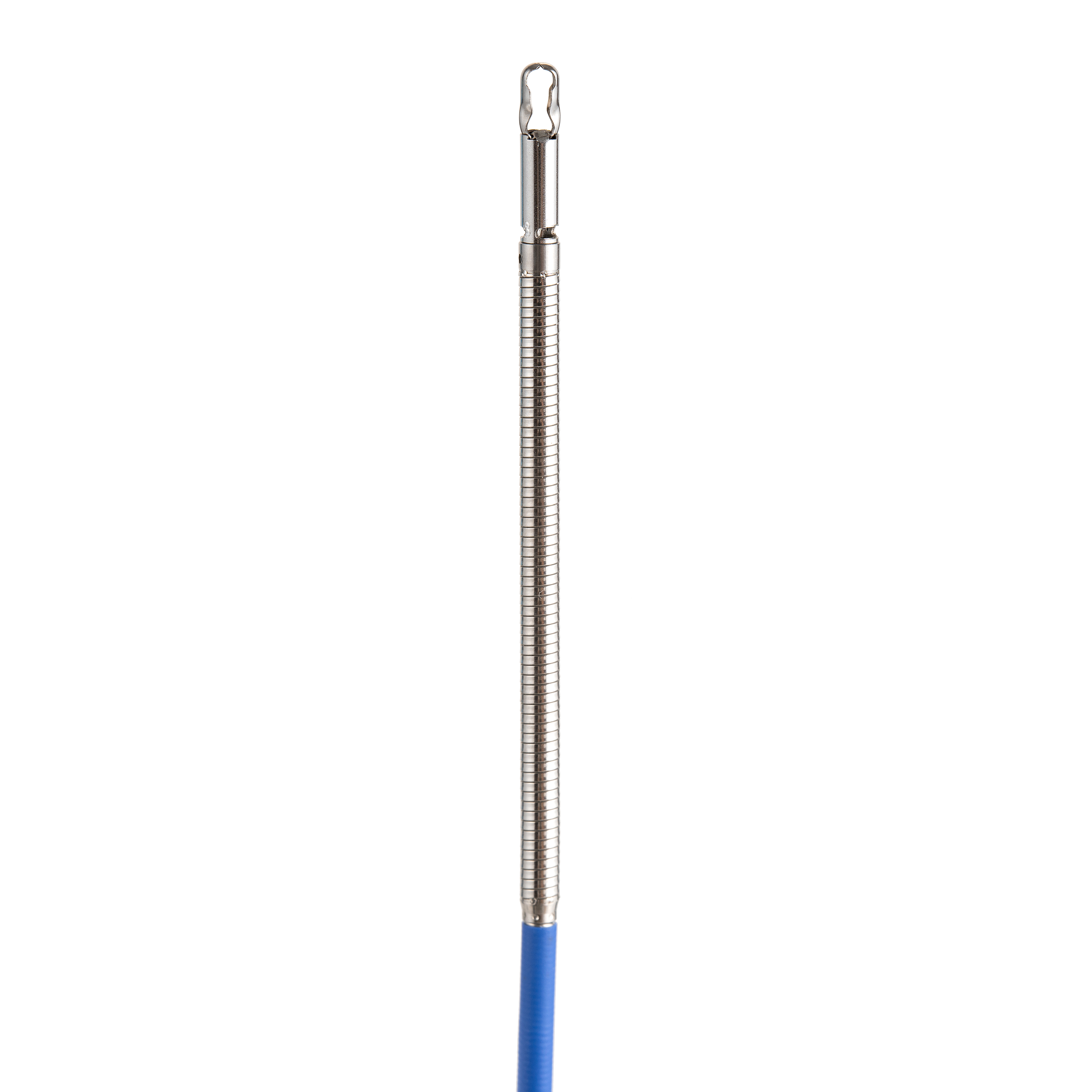

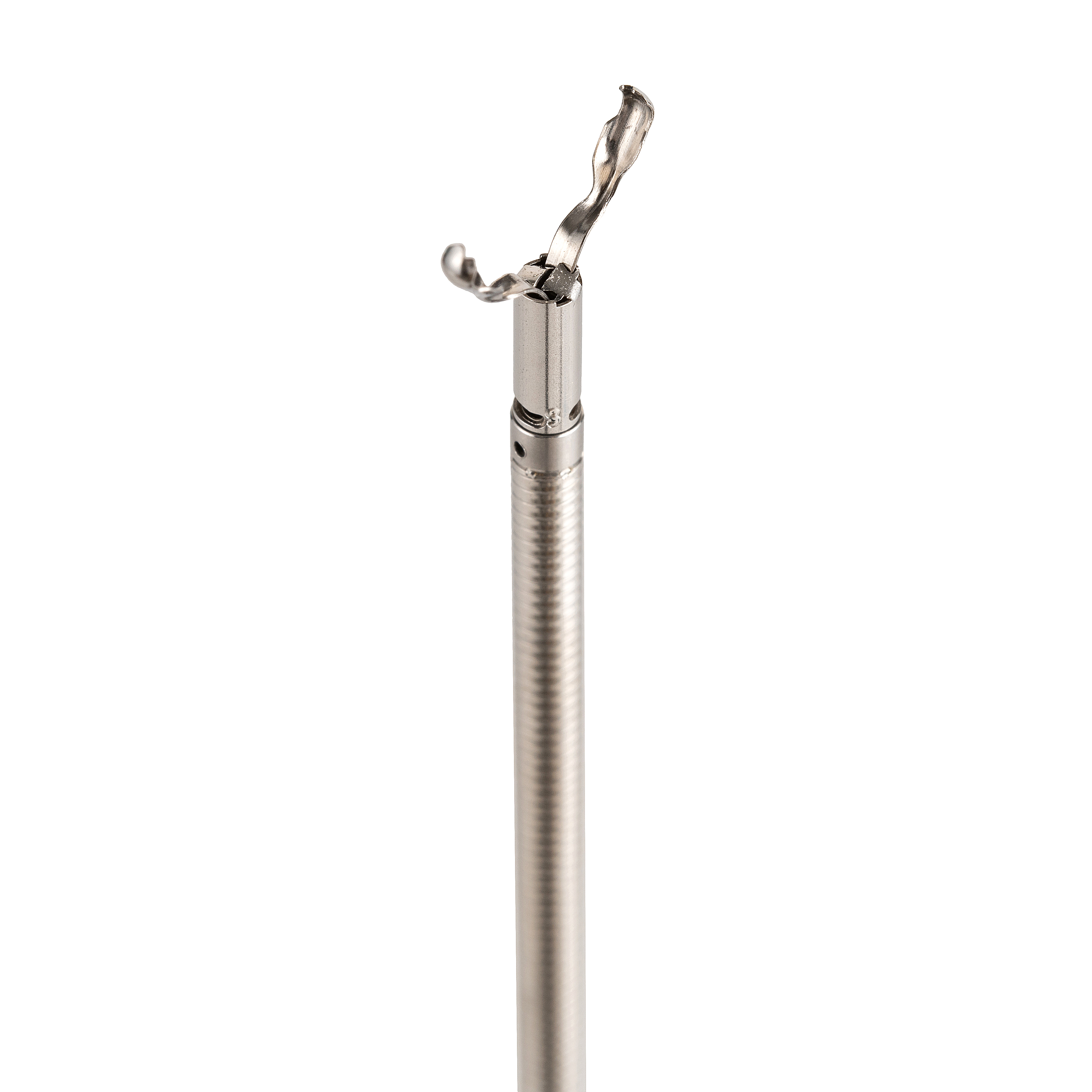

Hemoclip

Hemostasis Clips from Pharos have wide opening choices (9,11,13, 15mm) With strong closure force on the tissue. The rotatable design can ensure the accuracy of the placement. We also have optional over-sheath design to avoid the risk of accidental injury of the biopsy channel.


 The device is intended to be used for clamping of the mucosal tissue of the gastro-intestinal tract under the guide of an endoscope.

The Hemostasis Clip is indicated for clip placement within the gastro-intestinal (GI) tract for the purpose of:
1)Endoscopic marking.
2)Hemostasis for:
Mucosal/submucosal defects＜3cm;
Bleeding ulcers;
Arteries＜2mm;
Polyps＜ 1.5cm in diameter;
Diverticula in the colon;
Prophylactic clipping to reduce the risk of delayed bleeding post lesion resection.
3)Anchoring to affix jejunal feeding tubes to the wall of the small bowel.


Wide opening choices (9,11,13, 15mm)
With strong closure force on the tissue.
Short stem
MRI compatible
Synchonic rotatable design can ensure the accuracy of the placement
Optional over-sheath design to avoid the risk of accidental injury of the biopsy channel.
Availability:
Quantity:
Inquire

Product Description

Model

Reference Number

D≤   (mm)

L

(±100mm)

A

(±20°)

H

(±1.5mm)







Model A:

Rotatable with over-

sheath, spring tube no

coated

PDHC-A-1650-135-9



2.75



1650



135

9

PDHC-A-1650-135-11

11

PDHC-A-1650-135-13

13

PDHC-A-1650-135-15

15

PDHC-A-1950-135-9



2.75



1950



135

9

PDHC-A-1950-135-11

11

PDHC-A-1950-135-13

13

PDHC-A-1950-135-15

15

PDHC-A-2300-135-9



2.75



2300



135

9

PDHC-A-2300-135-11

11

PDHC-A-2300-135-13

13

PDHC-A-2300-135-15

15

PDHC-A-2700-135-9

2.75

2700

135

9





PDHC-A-2700-135-11




11

PDHC-A-2700-135-13

13

PDHC-A-2700-135-15

15

Model

Reference Number

D≤   (mm)

L

(±100mm)

A

(±20°)

H

(±1.5mm)








Model B:

Rotatable with over-

sheath, spring tube

coated

PDHC-B-1650-135-9



2.75



1650



135

9

PDHC-B-1650-135-11

11

PDHC-B-1650-135-13

13

PDHC-B-1650-135-15

15

PDHC-B-1950-135-9



2.75



1950



135

9

PDHC-B-1950-135-11

11

PDHC-B-1950-135-13

13

PDHC-B-1950-135-15

15

PDHC-B-2300-135-9



2.75



2300



135

9

PDHC-B-2300-135-11

11

PDHC-B-2300-135-13

13

PDHC-B-2300-135-15

15

PDHC-B-2700-135-9



2.75



2700



135

9

PDHC-B-2700-135-11

11

PDHC-B-2700-135-13

13

PDHC-B-2700-135-15

15

Model

Reference Number

D≤   (mm)

L

(±100mm)

A

(±20°)

H

(±1.5mm)









Model C:

Rotatable and no

over-sheath, spring

tube coated

PDHC-C-1650-135-9



2.75



1650



135

9

PDHC-C-1650-135-11

11

PDHC-C-1650-135-13

13

PDHC-C-1650-135-15

15

PDHC-C-1950-135-9



2.75



1950



135

9

PDHC-C-1950-135-11

11

PDHC-C-1950-135-13

13

PDHC-C-1950-135-15

15

PDHC-C-2300-135-9



2.75



2300



135

9

PDHC-C-2300-135-11

11

PDHC-C-2300-135-13

13

PDHC-C-2300-135-15

15

PDHC-C-2700-135-9



2.75



2700



135

9

PDHC-C-2700-135-11

11

PDHC-C-2700-135-13

13

PDHC-C-2700-135-15

15

Model

Reference Number

D≤   (mm)

L

(±100mm)

A

(±20°)

H

(±1.5mm)

Model D:

PDHC-D-1650-135-9

2.75

1650

135

9




Rotatable and no

over-sheath, spring

tube no coated

PDHC-D-1650-135-11




11

PDHC-D-1650-135-13

13

PDHC-D-1650-135-15

15

PDHC-D-1950-135-9



2.75



1950



135

9

PDHC-D-1950-135-11

11

PDHC-D-1950-135-13

13

PDHC-D-1950-135-15

15

PDHC-D-2300-135-9



2.75



2300



135

9

PDHC-D-2300-135-11

11

PDHC-D-2300-135-13

13

PDHC-D-2300-135-15

15

PDHC-D-2700-135-9



2.75



2700



135

9

PDHC-D-2700-135-11

11

PDHC-D-2700-135-13

13

PDHC-D-2700-135-15

15

Model

Reference Number

D≤   (mm)

L

(±100mm)

A

(±20°)

H

(±1.5mm)









Model E:

Rotatable (roller type)

with over-sheath,

spring tube no coated

PDHC-E-1650-135-9



2.75



1650



135

9

PDHC-E-1650-135-11

11

PDHC-E-1650-135-13

13

PDHC-E-1650-135-15

15

PDHC-E-1950-135-9



2.75



1950



135

9

PDHC-E-1950-135-11

11

PDHC-E-1950-135-13

13

PDHC-E-1950-135-15

15

PDHC-E-2300-135-9



2.75



2300



135

9

PDHC-E-2300-135-11

11

PDHC-E-2300-135-13

13

PDHC-E-2300-135-15

15

PDHC-E-2700-135-9



2.75



2700



135

9

PDHC-E-2700-135-11

11

PDHC-E-2700-135-13

13

PDHC-E-2700-135-15

15
