Product Description

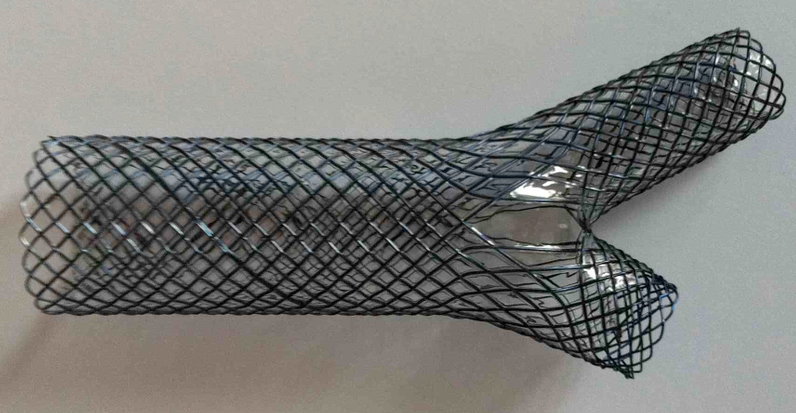

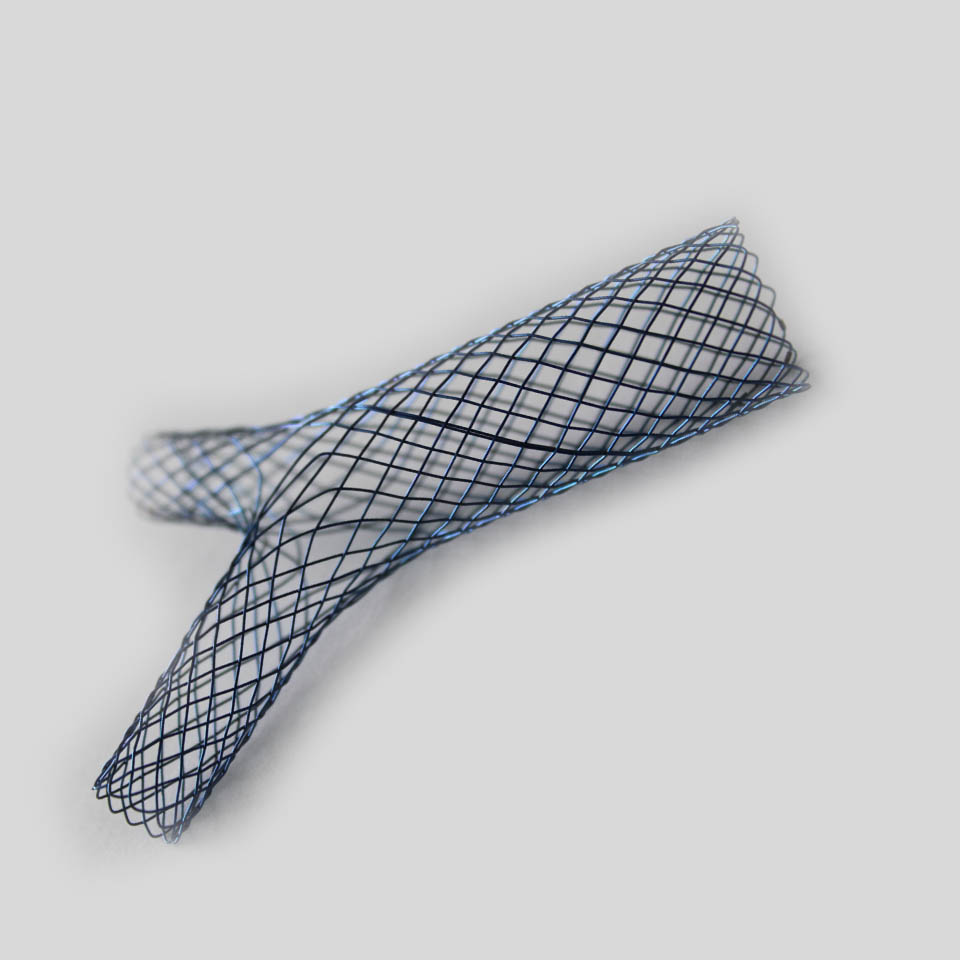

Y-Shape Carina Stents
Indication:Tracheal or bronchial stenosis induced by late lung cancer, lumen stenosis under outside pressure caused by mediastinum and esophageal tumors
Performance Characteristics:
■ Y-design fitting anatomic structure
■ Self-expanding with high radial force
■ Excellent positional stability
■ Resistant and elastic covering
■ Fully covered stents available
■ Release with high radiopacity
Specifications:
REF | Trachea Dia.(mm) | Trachea Length (mm) | Main Bronchial Dia.(mm) | Main Bronchial Length (mm) Right/Left | Product illustration | Introducer System |

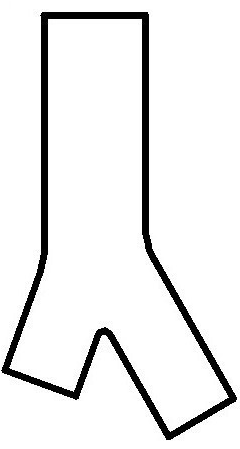

Uncovered | ||||||
GS-8-71-16040-20 | 16 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-71-16050-20 | 16 | 50 | 12 | 20/30 | 24Fr*600mm | |
GS-8-71-16060-20 | 16 | 60 | 12 | 20/30 | 24Fr*600mm | |
GS-8-71-18040-20 | 18 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-71-18050-20 | 18 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-71-18060-20 | 18 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-71-20040-20 | 20 | 40 | 14 | 20/30 | 24Fr*600mm | |
GS-8-71-20050-20 | 20 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-71-20060-20 | 20 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-71-16040-15 | 16 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-71-16050-15 | 16 | 50 | 12 | 15/30 | 24Fr*600mm | |
GS-8-71-16060-15 | 16 | 60 | 12 | 15/30 | 24Fr*600mm | |
GS-8-71-18040-15 | 18 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-71-18050-15 | 18 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-71-18060-15 | 18 | 60 | 14 | 15/30 | 24Fr*600mm | |
GS-8-71-20040-15 | 20 | 40 | 14 | 15/30 | 24Fr*600mm | |
GS-8-71-20050-15 | 20 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-71-20060-15 | 20 | 60 | 14 | 15/30 | 24Fr*600mm | |

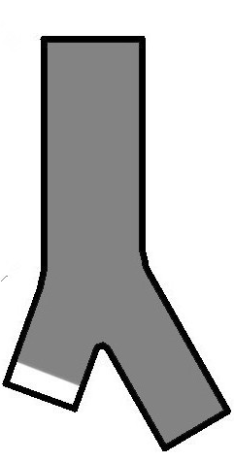

Partly covered | ||||||
GS-8-72-16040-20 | 16 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-72-16050-20 | 16 | 50 | 12 | 20/30 | 24Fr*600mm | |
GS-8-72-16060-20 | 16 | 60 | 12 | 20/30 | 24Fr*600mm | |
GS-8-72-18040-20 | 18 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-72-18050-20 | 18 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-72-18060-20 | 18 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-72-20040-20 | 20 | 40 | 14 | 20/30 | 24Fr*600mm | |
GS-8-72-20050-20 | 20 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-72-20060-20 | 20 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-72-16040-15 | 16 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-72-16050-15 | 16 | 50 | 12 | 15/30 | 24Fr*600mm | |
GS-8-72-16060-15 | 16 | 60 | 12 | 15/30 | 24Fr*600mm | |
GS-8-72-18040-15 | 18 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-72-18050-15 | 18 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-72-18060-15 | 18 | 60 | 14 | 15/30 | 24Fr*600mm | |
GS-8-72-20040-15 | 20 | 40 | 14 | 15/30 | 24Fr*600mm | |
GS-8-72-20050-15 | 20 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-72-20060-15 | 20 | 60 | 14 | 15/30 | 24Fr*600mm | |

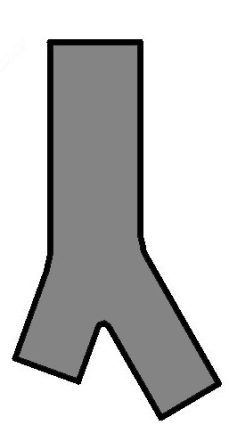

Fully covered | ||||||
GS-8-73-16040-20 | 16 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-73-16050-20 | 16 | 50 | 12 | 20/30 | 24Fr*600mm | |
GS-8-73-16060-20 | 16 | 60 | 12 | 20/30 | 24Fr*600mm | |
GS-8-73-18040-20 | 18 | 40 | 12 | 20/30 | 24Fr*600mm | |
GS-8-73-18050-20 | 18 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-73-18060-20 | 18 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-73-20040-20 | 20 | 40 | 14 | 20/30 | 24Fr*600mm | |
GS-8-73-20050-20 | 20 | 50 | 14 | 20/30 | 24Fr*600mm | |
GS-8-73-20060-20 | 20 | 60 | 14 | 20/30 | 24Fr*600mm | |
GS-8-73-16040-15 | 16 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-73-16050-15 | 16 | 50 | 12 | 15/30 | 24Fr*600mm | |
GS-8-73-16060-15 | 16 | 60 | 12 | 15/30 | 24Fr*600mm | |
GS-8-73-18040-15 | 18 | 40 | 12 | 15/30 | 24Fr*600mm | |
GS-8-73-18050-15 | 18 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-73-18060-15 | 18 | 60 | 14 | 15/30 | 24Fr*600mm | |
GS-8-73-20040-15 | 20 | 40 | 14 | 15/30 | 24Fr*600mm | |
GS-8-73-20050-15 | 20 | 50 | 14 | 15/30 | 24Fr*600mm | |
GS-8-73-20060-15 | 20 | 60 | 14 | 15/30 | 24Fr*600mm |
