Product Description

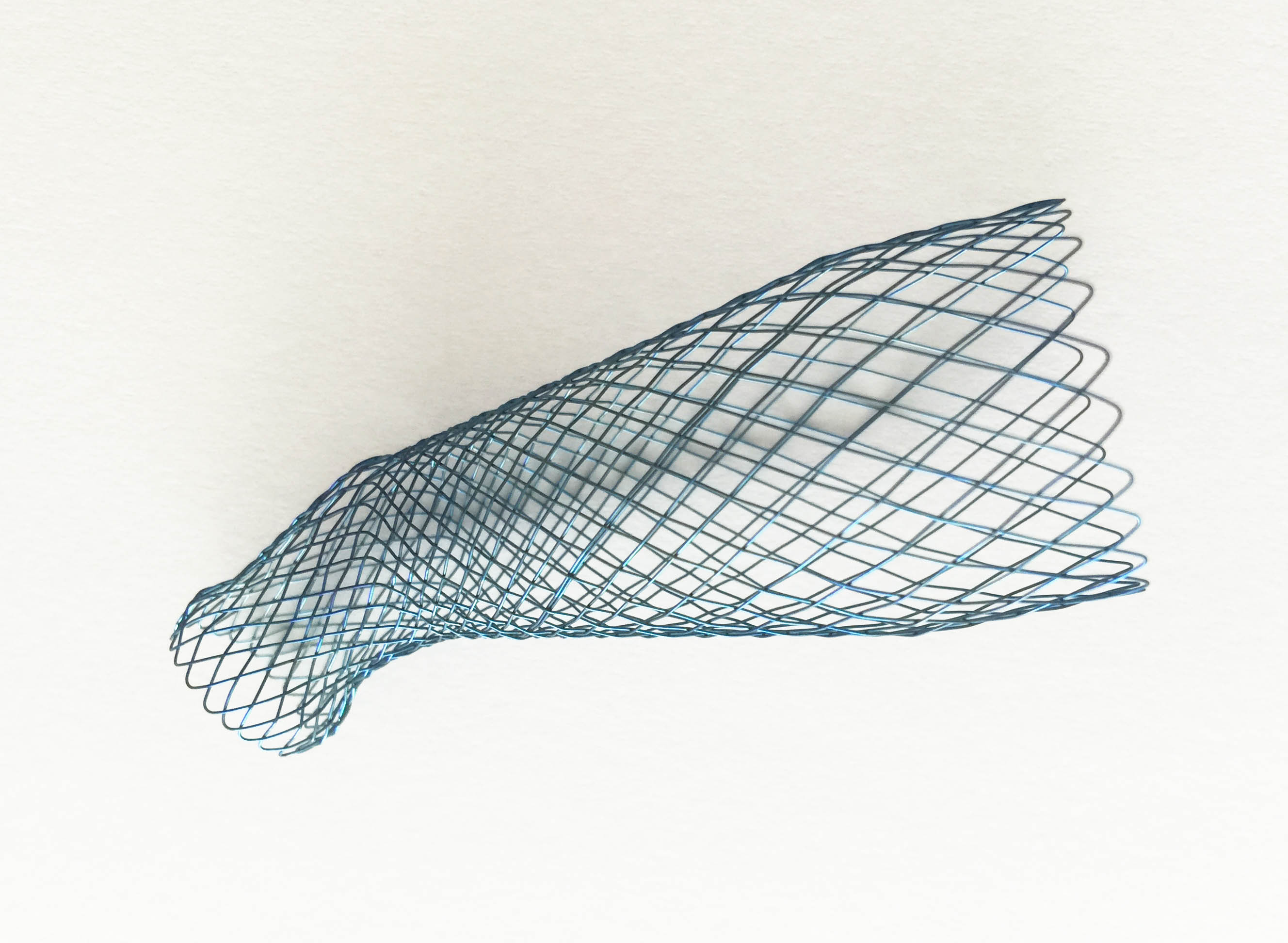

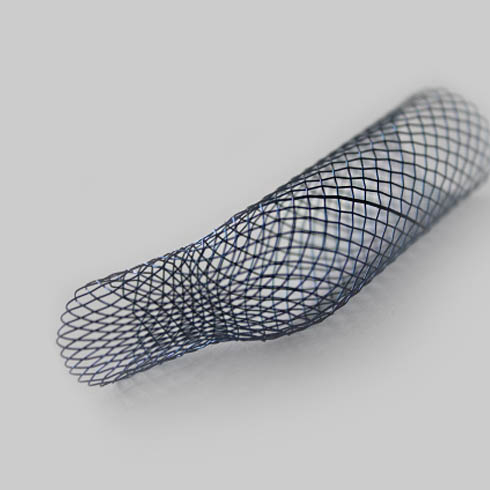

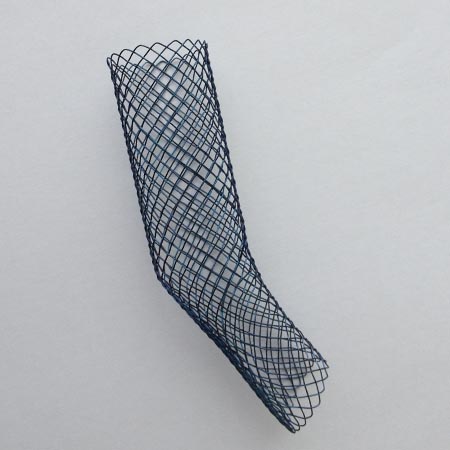

J-Shape Fistula-Occluding Tracheal Stents
Indication:
Tracheal or bronchial stenosis or fistula induced by late lung cancer, lumen stenosis under outside pressure caused by mediastinum and esophageal tumors
Performance Characteristics:
■ J-design fitting anatomic structure
■ Self-expanding with high radial force
■ Excellent positional stability
■ Resistant and elastic covering
■ Fully covered stents available
■ Release with high radiopacity
Specifications:

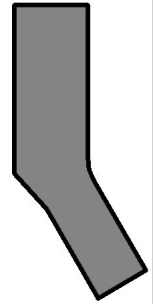

REF | Trachea Dia.(mm) | Trachea Length (mm) | Main Bronchial Dia.(mm) | Main Bronchial Length (mm) | Product illustration | Introducer System |
Uncovered | ||||||
GS-8-61-16030 | 16 | 30 | 12 | 30 | ![]() | 18Fr*600mm |
GS-8-61-18040 | 18 | 40 | 14 | 30 | 18Fr*600mm | |
GS-8-61-20050 | 20 | 50 | 14 | 30 | 18Fr*600mm | |
Fully covered | ||||||
GS-8-63-16030 | 16 | 30 | 12 | 30 | ![]() | 24Fr*700mm |
GS-8-63-18040 | 18 | 40 | 14 | 30 | 24Fr*700mm | |
GS-8-63-20050 | 20 | 50 | 14 | 30 | 24Fr*700mm |
