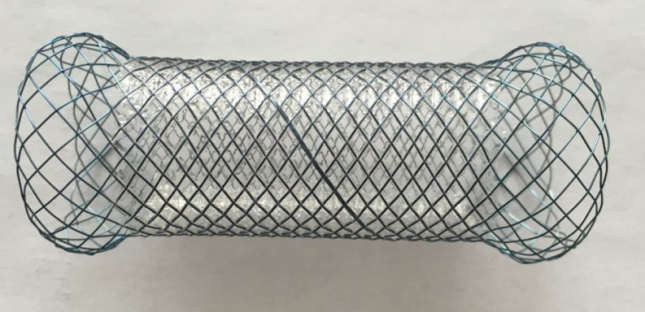

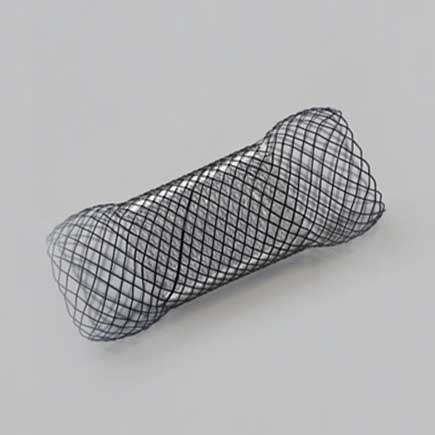

Covered DuodenalColonic Stents with Non-TTS Placement

Covered Duodenal/Colonic Stents with non-TTS placement

Indication:

Tumor or fistula in gastrointestinal tract

Performance Characteristics:

■Self-expandable and high radial force

■ Reinforced metal tube for fluent release

■ Ball ends for excellent positional stability

■ Release withhigh radiopacity

Specifications:

REF	Middle/Ends Dia.  (mm)	Length  (mm)	Product illustration	Introducer System
Partly covered
GS-5-52-18060	18/24	60		18Fr*1400mm
GS-5-52-18080	18/24	80		18Fr*1400mm
GS-5-52-18100	18/24	100		18Fr*1400mm
GS-5-52-18120	18/24	120		18Fr*1400mm
GS-5-52-20060	20/26	60		18Fr*1400mm
GS-5-52-20080	20/26	80		18Fr*1400mm
GS-5-52-20100	20/26	100		18Fr*1400mm
GS-5-52-20120	20/26	120		18Fr*1400mm
GS-5-52-22060	22/28	60		18Fr*1400mm
GS-5-52-22080	22/28	80		18Fr*1400mm
GS-5-52-22100	22/28	100		18Fr*1400mm
GS-5-52-22120	22/28	120		18Fr*1400mm
GS-5-52-25060	25/30	60		18Fr*1400mm
GS-5-52-25080	25/30	80		18Fr*1400mm
GS-5-52-25100	25/30	100		18Fr*1400mm
GS-5-52-25120	25/30	120		18Fr*1400mm
Fully covered
GS-5-53-18060	18/24	60		18Fr*1400mm
GS-5-53-18080	18/24	80		18Fr*1400mm
GS-5-53-18100	18/24	100		18Fr*1400mm
GS-5-53-18120	18/24	120		18Fr*1400mm
GS-5-53-20060	20/26	60		18Fr*1400mm
GS-5-53-20080	20/26	80		18Fr*1400mm
GS-5-53-20100	20/26	100		18Fr*1400mm
GS-5-53-20120	20/26	120		18Fr*1400mm
GS-5-53-22060	22/28	60		18Fr*1400mm
GS-5-53-22080	22/28	80		18Fr*1400mm
GS-5-53-22100	22/28	100		18Fr*1400mm
GS-5-53-22120	22/28	120		18Fr*1400mm
GS-5-53-25060	25/30	60		18Fr*1400mm
GS-5-53-25080	25/30	80		18Fr*1400mm
GS-5-53-25100	25/30	100		18Fr*1400mm
GS-5-53-25120	25/30	120		18Fr*1400mm
