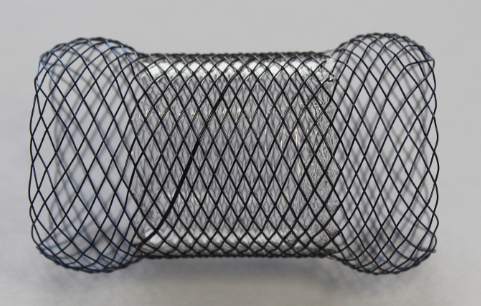

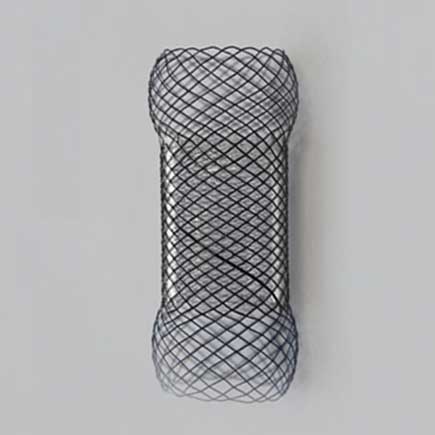

Colonic Rectal Stents

Colonic /Rectal Stents

Indication:

Tumor and stenosis on lower gastrointestinal tract

Performance Characteristics:

      ■Self-expandable and high radial force

      ■Reinforced metal tube for fluent release

    ■ Ball ends for excellent positional stability

      ■Release withhigh radiopacity

Specifications:

REF	Middle/Ends Dia.  (mm)	Length  (mm)	Product illustration	Introducer System

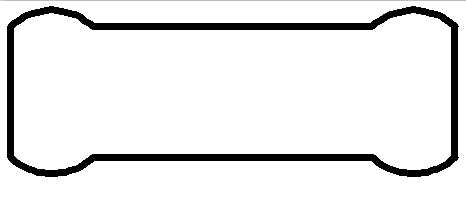

Uncovered
GS-6-51-25060	25/30	60		24Fr*700mm
GS-6-51-25080	25/30	80		24Fr*700mm
GS-6-51-25100	25/30	100		24Fr*700mm
GS-6-51-25120	25/30	120		24Fr*700mm
GS-6-51-28060	28/34	60		24Fr*700mm
GS-6-51-28080	28/34	80		24Fr*700mm
GS-6-51-28100	28/34	100		24Fr*700mm
GS-6-51-28120	28/34	120		24Fr*700mm
GS-6-51-30060	30/36	60		24Fr*700mm
GS-6-51-30080	30/36	80		24Fr*700mm
GS-6-51-30100	30/36	100		24Fr*700mm
GS-6-51-30120	30/36	120		24Fr*700mm

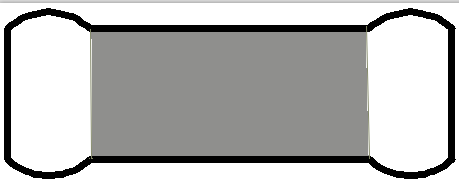

Partly covered
GS-6-52-25060	25/30	60		24Fr*700mm
GS-6-52-25080	25/30	80		24Fr*700mm
GS-6-52-25100	25/30	100		24Fr*700mm
GS-6-52-25120	25/30	120		24Fr*700mm
GS-6-52-28060	28/34	60		24Fr*700mm
GS-6-52-28080	28/34	80		24Fr*700mm
GS-6-52-28100	28/34	100		24Fr*700mm
GS-6-52-28120	28/34	120		24Fr*700mm
GS-6-52-30060	30/36	60		24Fr*700mm
GS-6-52-30080	30/36	80		24Fr*700mm
GS-6-52-30100	30/36	100		24Fr*700mm
GS-6-52-30120	30/36	120		24Fr*700mm

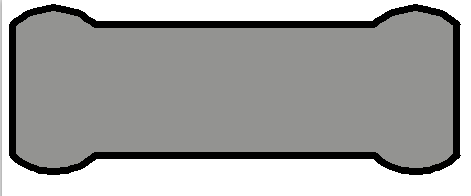

Fully covered
GS-6-53-25060	25/30	60		24Fr*700mm
GS-6-53-25080	25/30	80		24Fr*700mm
GS-6-53-25100	25/30	100		24Fr*700mm
GS-6-53-25120	25/30	120		24Fr*700mm
GS-6-53-28060	28/34	60		24Fr*700mm
GS-6-53-28080	28/34	80		24Fr*700mm
GS-6-53-28100	28/34	100		24Fr*700mm
GS-6-53-28120	28/34	120		24Fr*700mm
GS-6-53-30060	30/36	60		24Fr*700mm
GS-6-53-30080	30/36	80		24Fr*700mm
GS-6-53-30100	30/36	100		24Fr*700mm
GS-6-53-30120	30/36	120		24Fr*700mm
